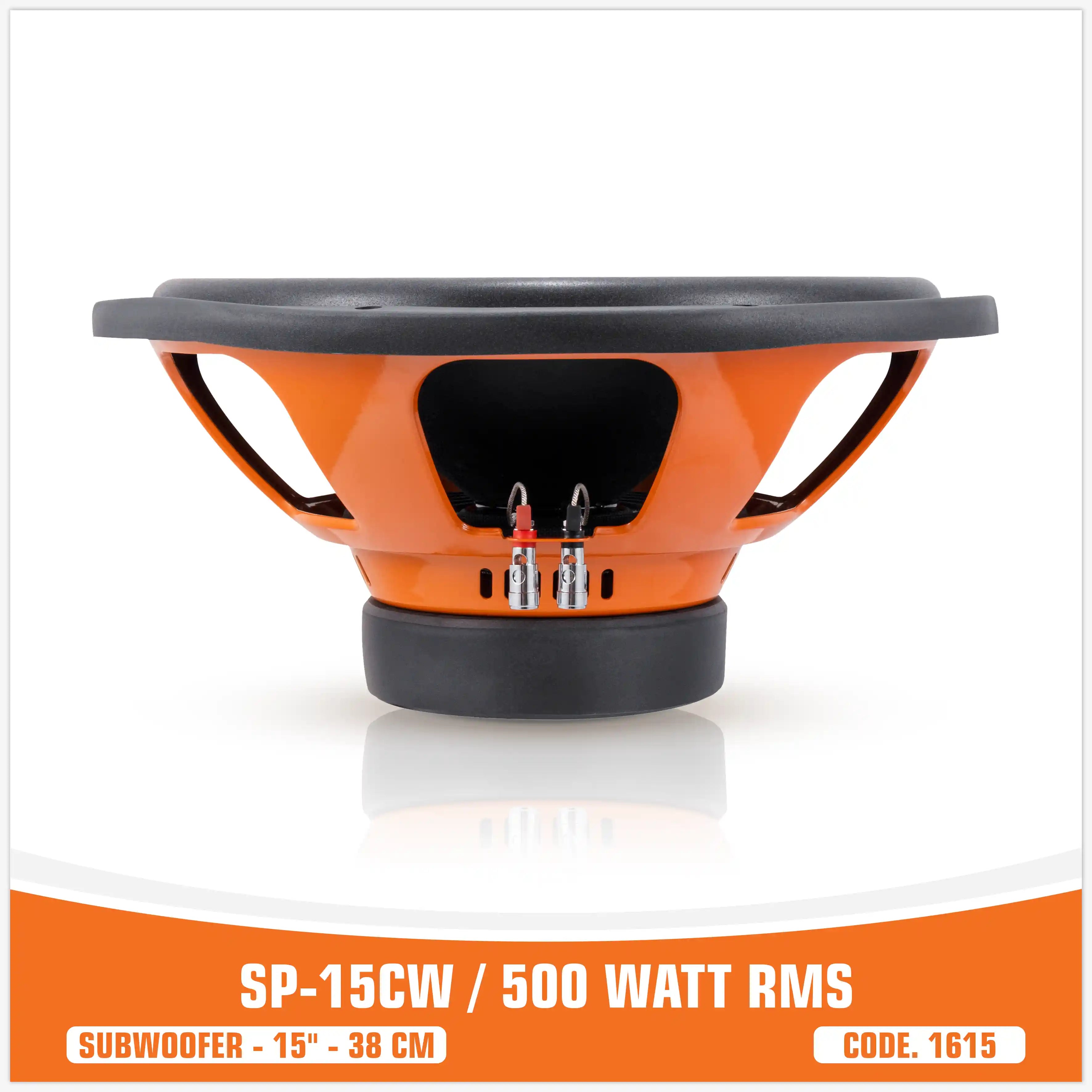

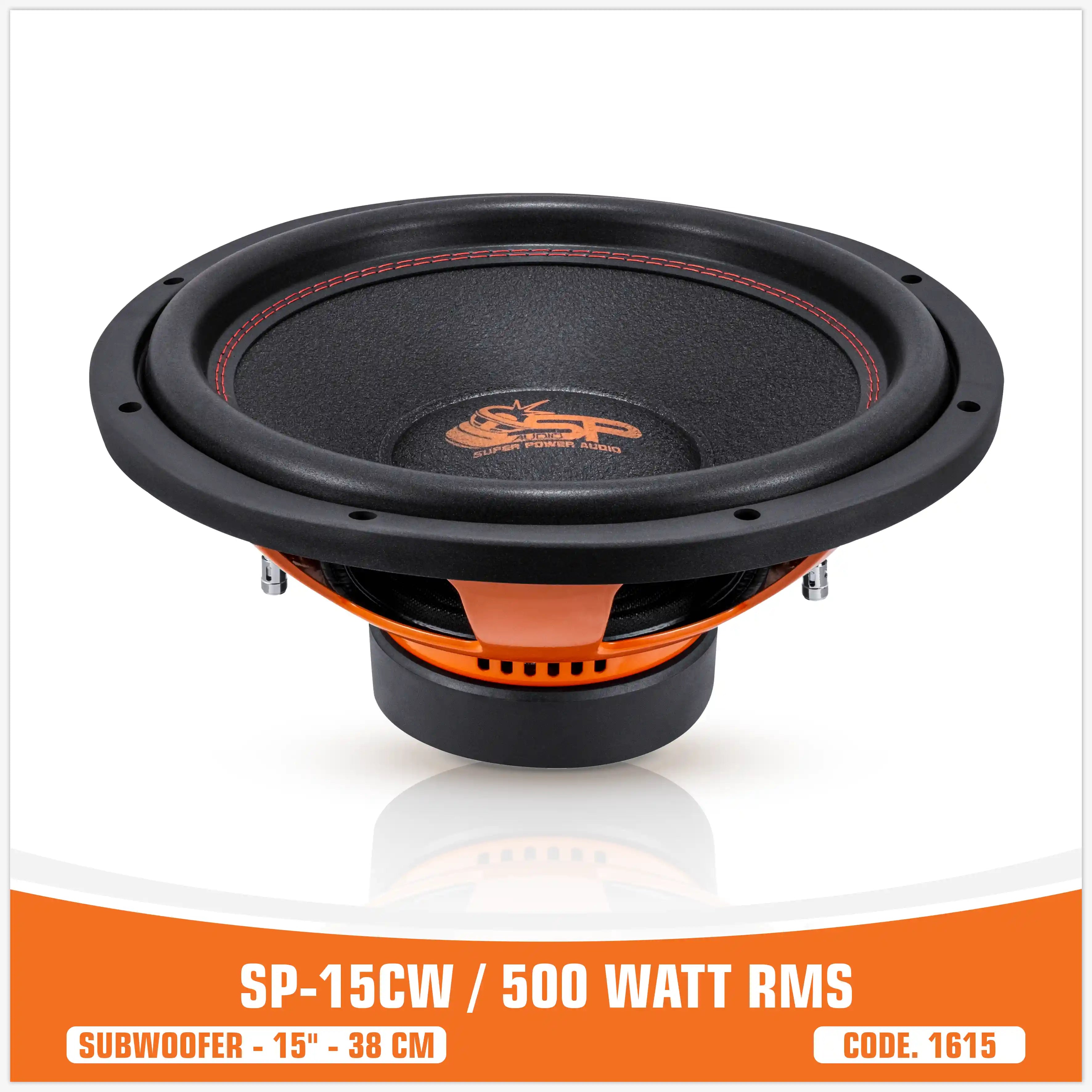

SP 15CW ENTRY LEVEL SUBWOOFER 15"/38CM 400W RMS (UNIT PRICE)
SP-15CW Subwoofer featuring 38cm (15 in.) cone is eager to thrill the enthusiasts with their power.

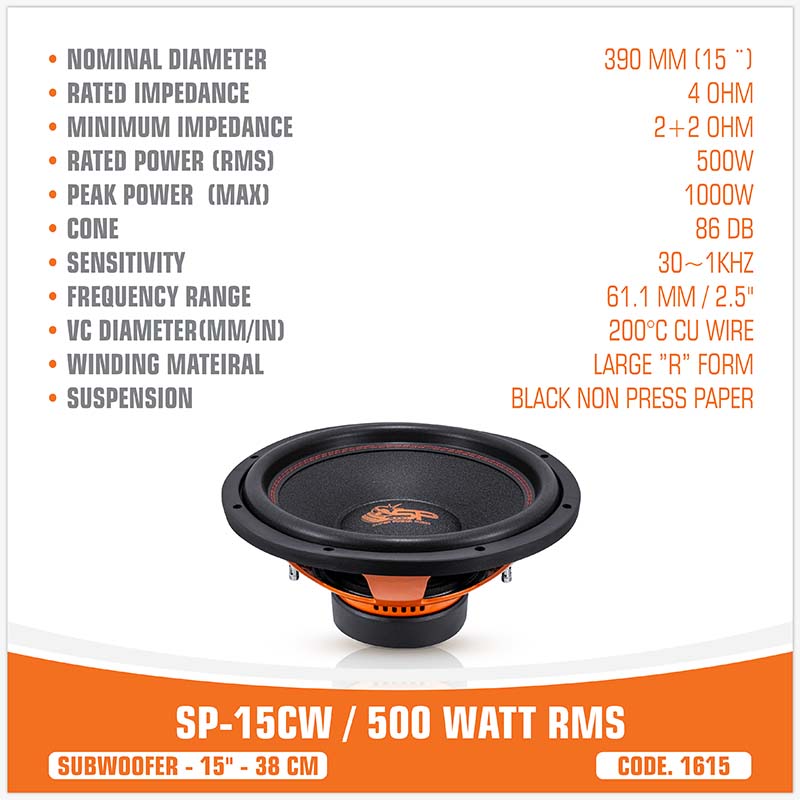

Technical Specs
| Size mm (in.) | 380 (15") |
| Power Handling - Continuous W RMS | 500 WATTS RMS |
| Power Handling - Peak W | 1000 WATTS MAX |
| Rated Impedance ohms | 4 ohms |
| Minimum Impedance ohms | 2+2 ohms |
| Voice Coil Ø | 61.1mm/2.5" |
| Sensitivity | 86 dB SPL 1W/1M |
| Frequency Range | 30~1KHZ |
| Winding Material | 200 °C Aluminum Wire |
| Weight of one subwoofer kg (lb.) | ---- |
| Magnet | 62 Oz Y30 Ferrite Magnet |
| Suspension | Large "R" Form |
| Cone | Black Non Press Paper |
-
Electro-acoustic Specs
Qts |
0.936 |
Vas I |
96.12 L |
Fs |
30.1 Hz |
King |
2+2 Ohms |
Mms |
283.9 g |
Xmax |
10 mm |
CMS |
0.099mm /N |
Qms |
7.24 |
QES |
1.075 |
SPL |
85.77 dB |
For example |
500W |
BL |
2.32pm TM |
DdSd |
-- cm829.58cm2 |
- Vent BOX
Volome |
105 L |
Tuning Freq |
30.1 Hz |
Vent Diameter |
ø-- mm |
Shape |
Circle |
End Correction |
one flanged ends |
Vent length |
-- cm |
Cross area: |
-- cm² |
-

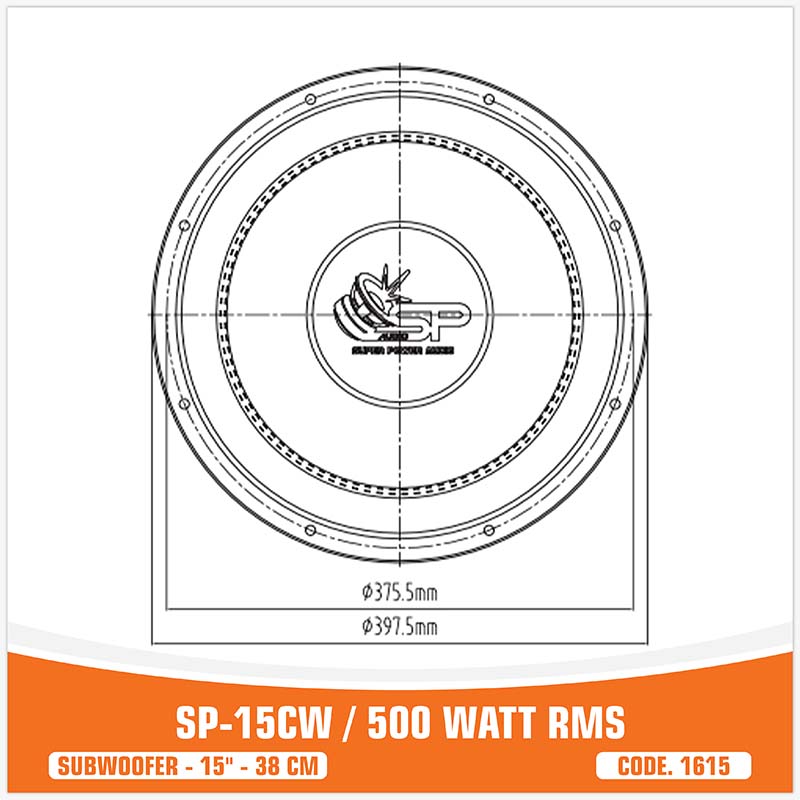

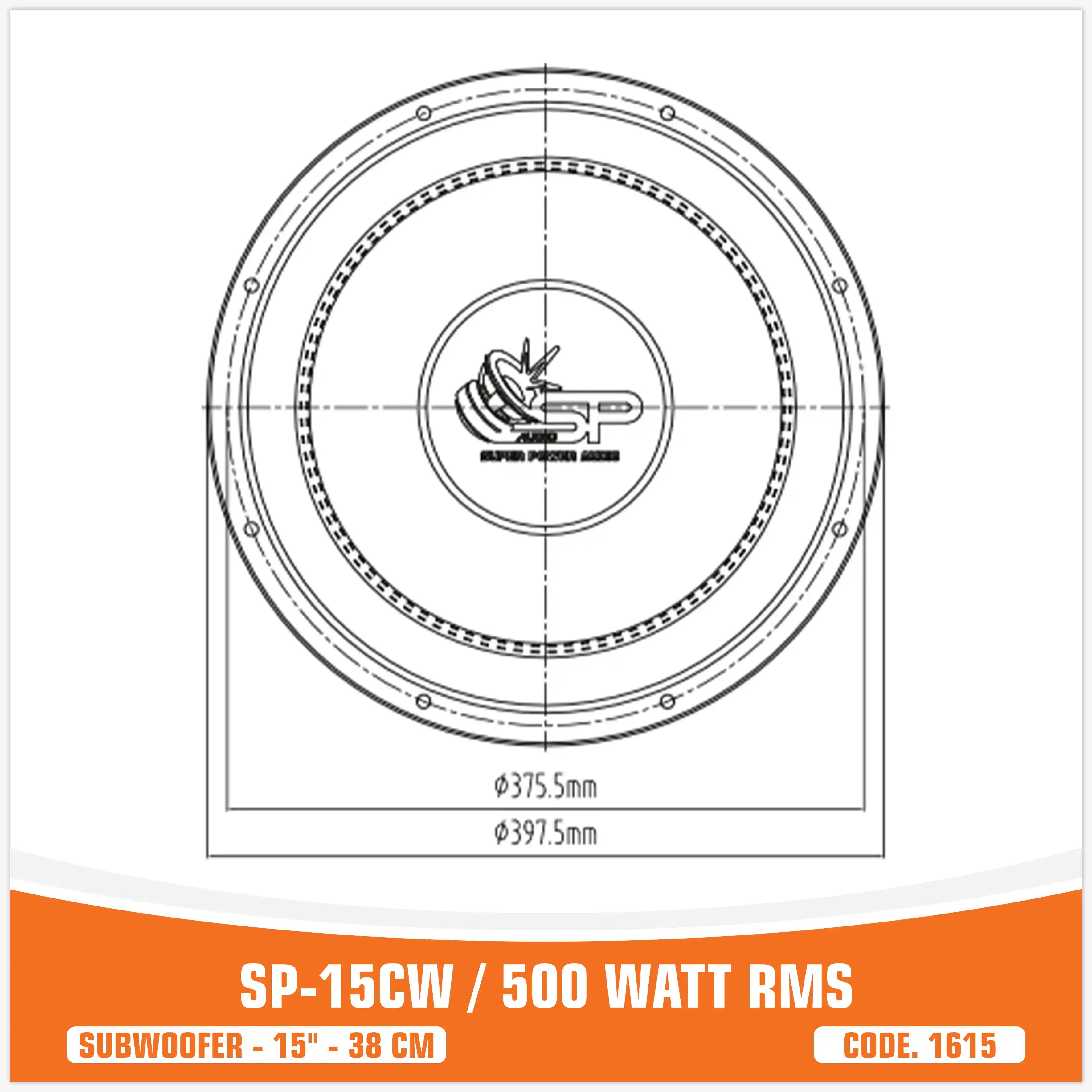

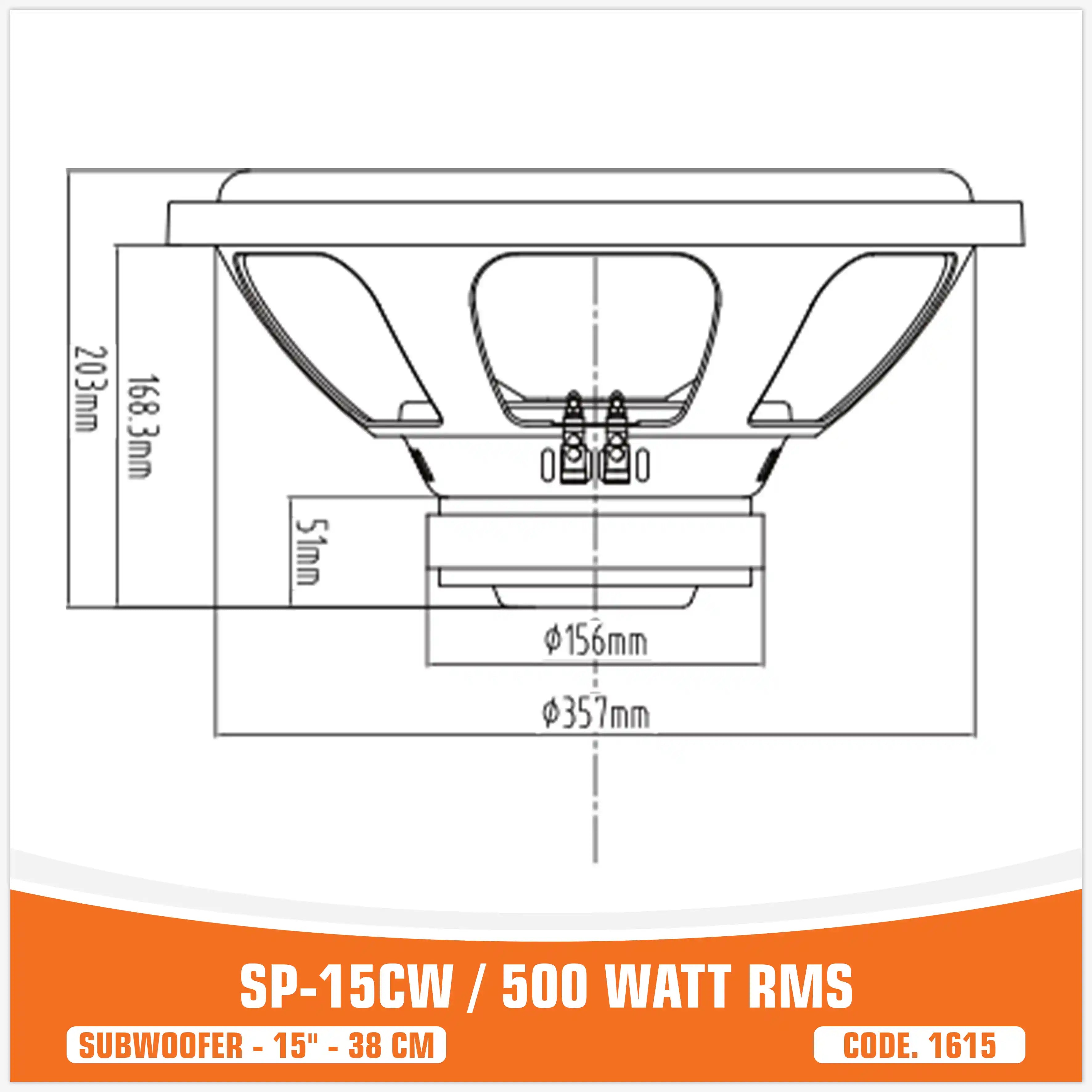

Physical Specs
-

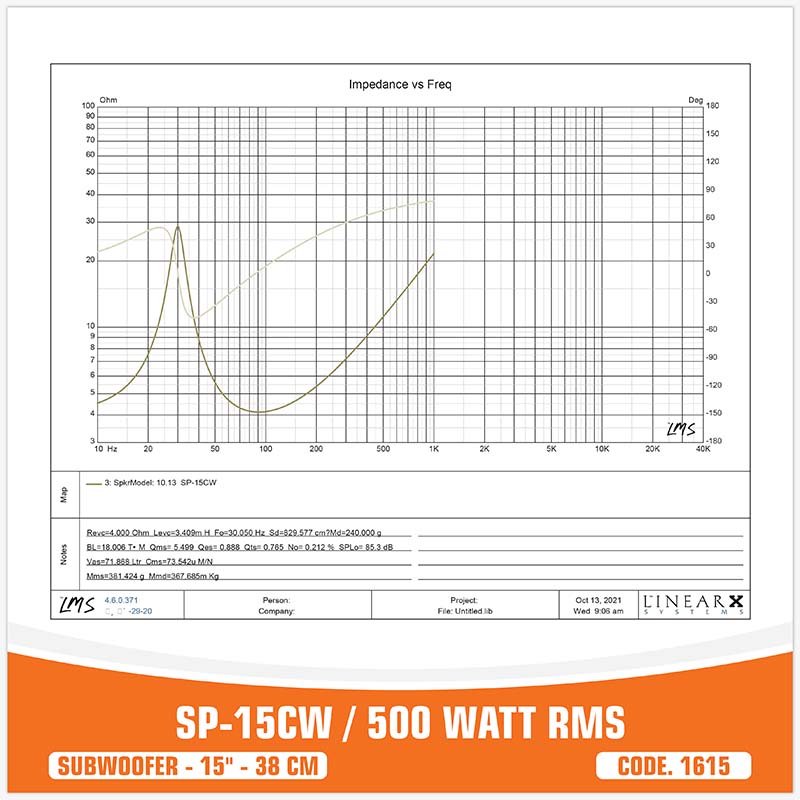

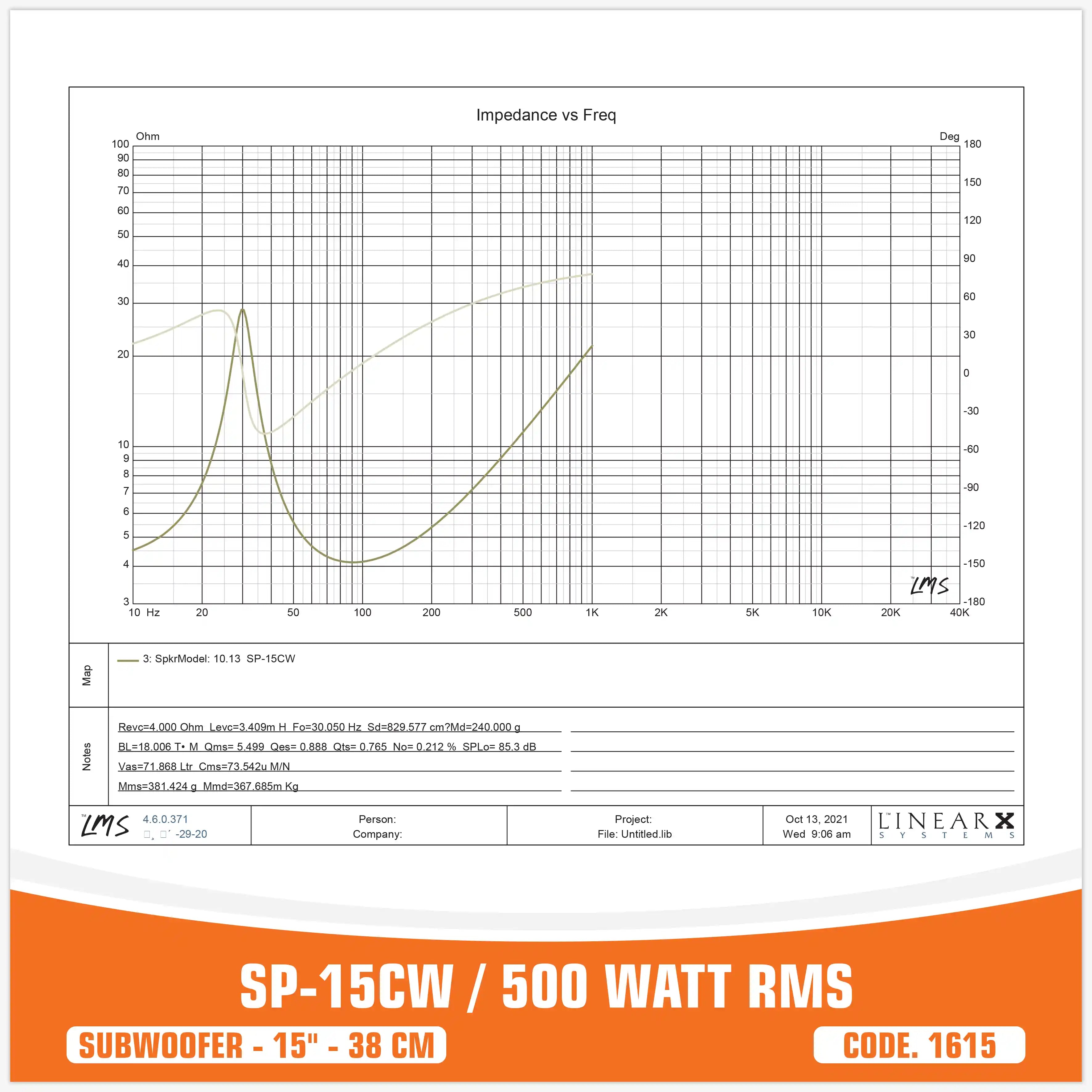

Frequency response
