SP 15CC SUBWOOFER 15"/38CM 1000W RMS (UNIT PRICE)
SP-15CC Subwoofer featuring 38cm (15 in.) cone is eager to thrill the enthusiasts with their power.
-

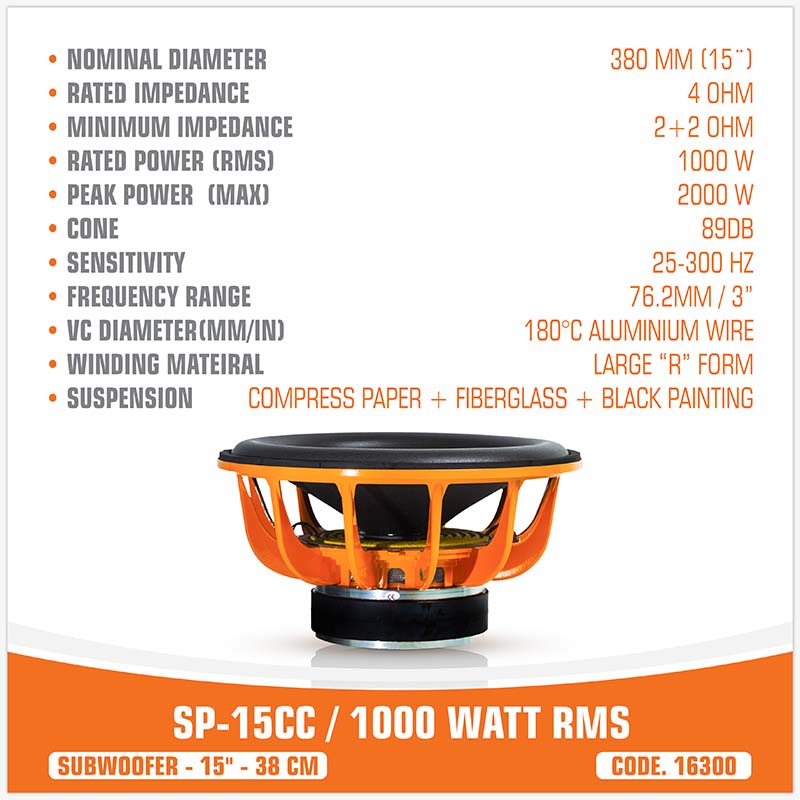

Technical Specs
| Size mm (in.) | 380 (15") |
| Power Handling - Continuous W RMS | 1000 WATTS RMS |
| Power Handling - Peak W | 2000 WATTS MAX |
| Rated Impedance ohms | 4 ohms |
| Minimum Impedance ohms | 2+2 ohms |
| Voice Coil Ø | 76.2mm/3” |
| Sensitivity | 89 dB SPL 1W/1M |
| Frequency Range | 20-200Hz |
| Winding Material | 180 °C Aluminum Wire |
| Weight of one subwoofer kg (lb.) | ---- |
| Magnet | 134 Oz Y30 Ferrite Magnet |
| Suspension | Large "R" Form |
| Cone | Compress Paper + FiberGlass + Black Painting |
- Electro-acoustic Specs
|
Qts |
0.633 |
| Vas I |
69.93 L |
| Fs |
37.00 Hz |
| King |
2+2 Ohms |
| Mms |
247,781g |
| Xmax |
5.0mm |
| CMS |
76.13um/N |
| Qms | 13,763 |
| QES | 0.663 |
| SPL |
89 dB |
| For example | 1000W |
|
BL |
18.55 TM |
|
Dd Sd |
32.00 cm 804.2 cm2 |
- Vent BOX
| Volome |
80 L |
| Tuning Freq | 35 Hz |
| Vent Diameter | ø102 mm |
| Shape | Circle |
| End Correction | Two flanged ends |
| Vent length | 17.5cm |
| Cross area: | 81.7 cm² |

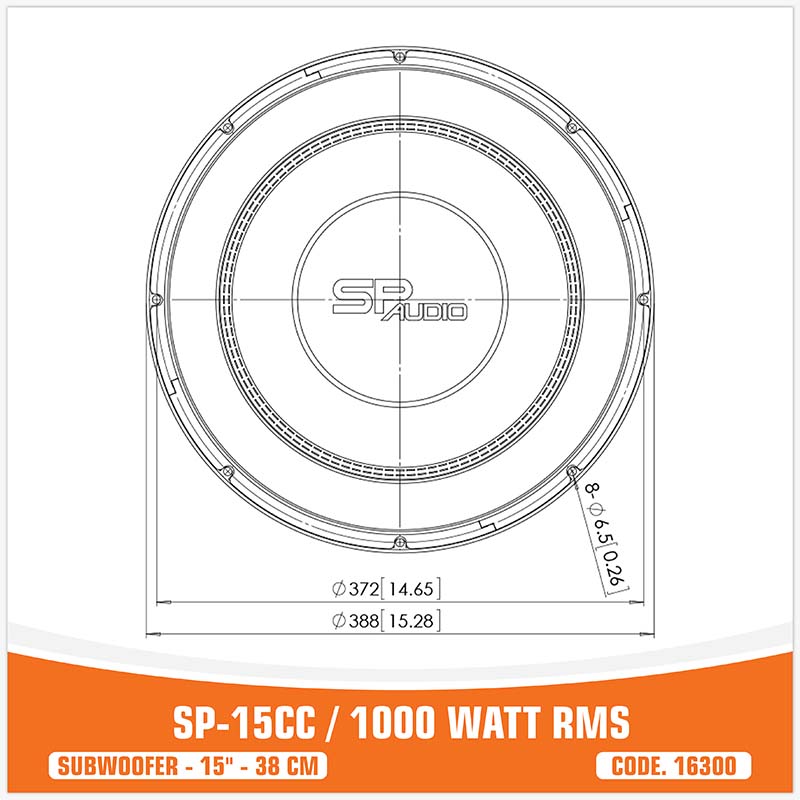

- Physical Specs

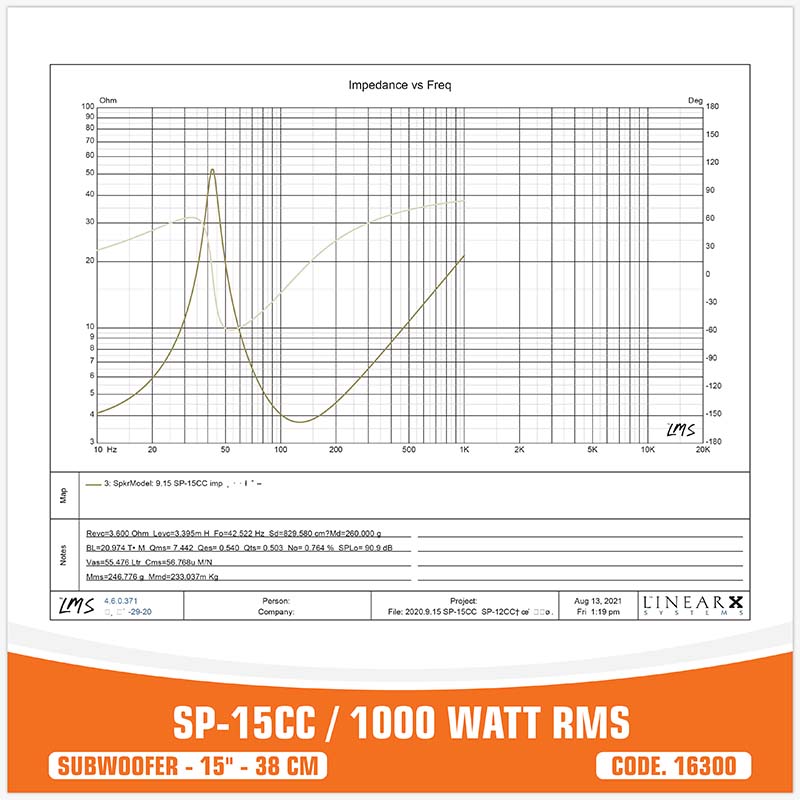

- Frequency response
