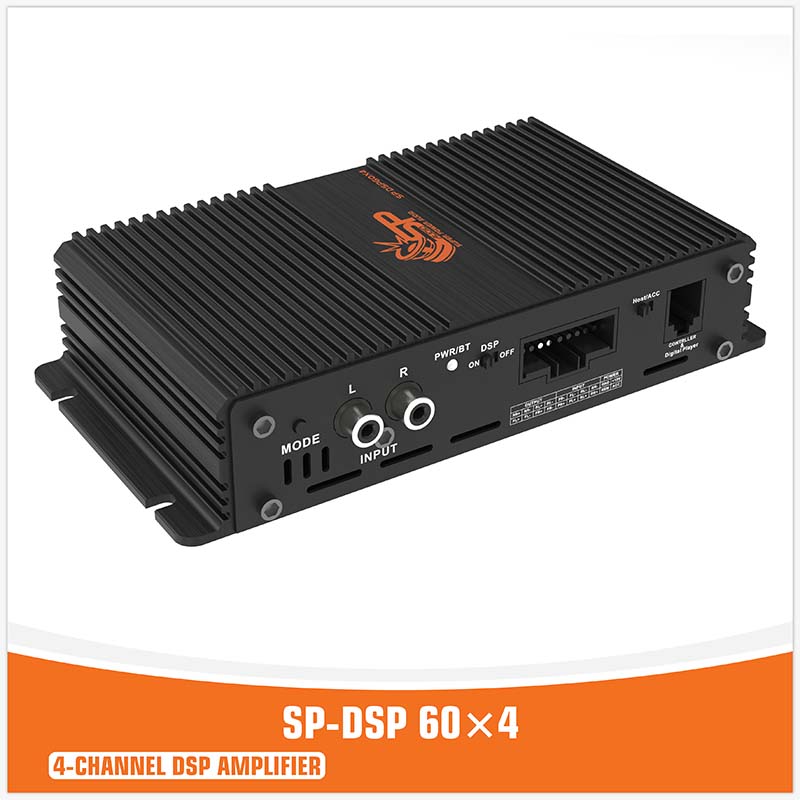

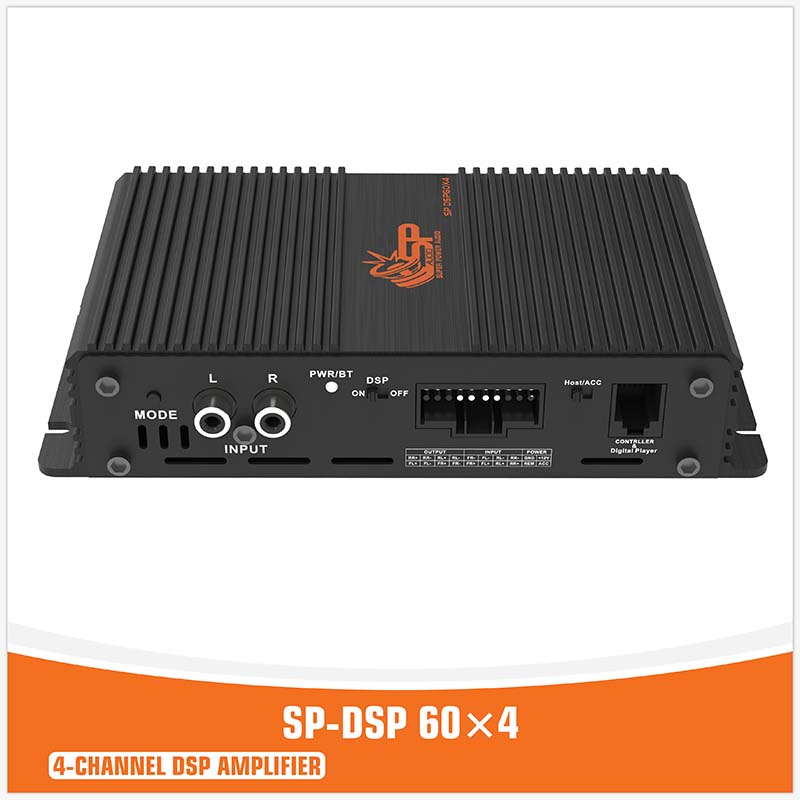

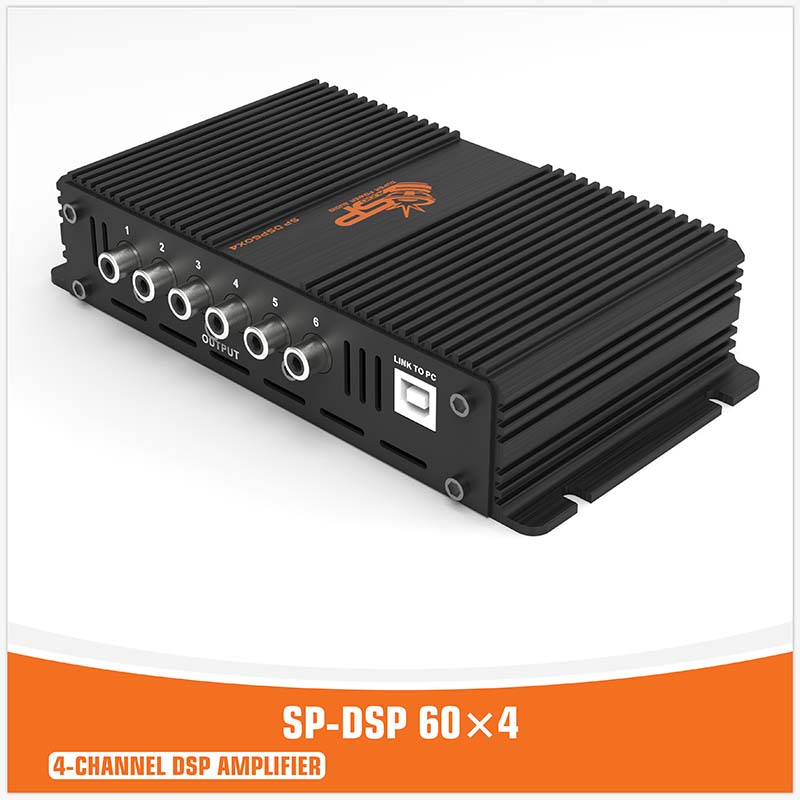

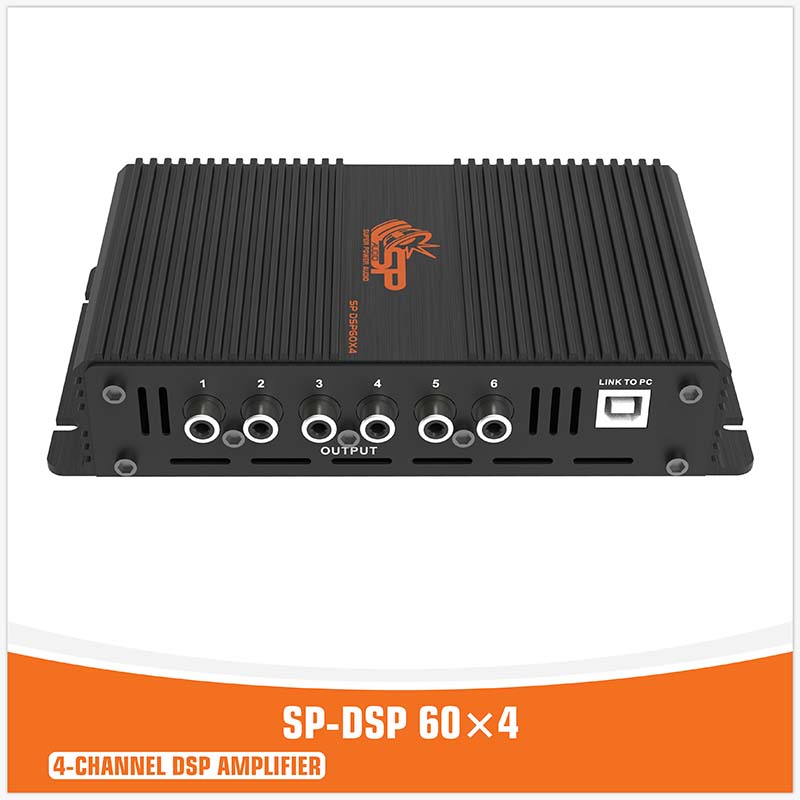

SP-DSP 60×4 AMPLIFIER 4CH
Technical Specifications
| Feature | Value / Description |
| DSP Model | SP DSP - 60x4 |
| EQ | 15 Band |
| USB | Support |
| Bluetooth | Built-in BT 5.0 |
| Input Signal (Main) | 4CH High Input / AUX / 2CH Optical |
| Output Channel | 6CH RCA |
| Output Power | 4 × 60 WATT |
| Dynamic Range | 95dB |
| Signal to Noise Ratio | 102dB |
| Total Harmonic Distortion | 0.03% |
| Frequency Range | 20Hz ~ 20KHz |
| Start REM Input | High levelstart (FL+/FL-) / ACC Start |
| Start REM Output | 12V start voltage output (200mA) |
Signal Processing & Detailed Parameters
| Section | Details |
| Input Signal | 4 IN High level, 2 IN RCA, USB play, HD 5.0 Bluetooth (Play Bluetooth / CAR HDSP / Tuning Bluetooth CAR HDSP BLE) |
| Output Signal | 4 OUT High level, 6CH RCA |
| Output Signal Equalizer |
1. 15 band Parametric Equalizer 2. Frequency range: 20Hz-20KHz 3. Q value: 0.3-50 4. Gain: -15.0dB to +15.0dB |
| Output Signal Divider | 6 CH Independent filter: Butterworth, Bessel, Linkwitz |
| Filter Frequency Division |
Crossover: 20Hz - 20KHz Slope: 12, 24, 36, 48dB/Oct |
| Output Phase & Delay |
Positive and reverse phase (0°-180°) Delayed: 0.000-6ms, 0-204cm, 0-80.3inch |
| Scene Operation | The machine can save 6 preset music scenes |
Important Bluetooth Note: Do not connect the tuning Bluetooth in the Bluetooth setting of the mobile phone, which will cause the applet software to fail to connect the Bluetooth.
USER MANUAL DSP-60×4
THE APP IS NOW AVAILABLE FOR ANDROID AND PC
YOU CAN DOWNLOAD IT HERE
SP-60×4 DSP (PC VERSION)
SP-60×4 DSP (Android)
SP-DSP 60×4 AMPLIFIER 4CH
Prix de vente€219,00
Prix normal€438,00
