SP EM 6.5KIT 2 WAY 2 WOOFER +2 TW + 2 CROSS 200W RMS (KIT PRICE)

Product Guide : SP-EM 6.5 KIT - High-Efficiency 2-Way Component System

Technical Specifications
• Nominal Diameter : 165 mm (6.5¨)
• Woofer Size : 6.5 Inch (165 mm)
• System Type : 2-Way Component Set
• Rated Impedance : 4Ω
• Minimum Impedance : 3.2 Ohm
• KIT Power Handling (RMS) : 200 WATT RMS
• KIT Power Handling(MAX) : 400 WATT MAX
• Midrange Power Handling (RMS) : 100 WATT RMS
• Tweeter Power Handling (RMS) : 100 WATT RMS
• Sensitivity Midrange : 96dB SPL 1W/1M
• Sensitivity Tweeter : 98dB SPL 1W/1M
• Frequency Range Midrange : 100～10kHz
• Frequency Range Tweeter : 2000～20kHz
• VC Diameter (Midrange) MM / IN : 30.5mm-1.5”
• VC Diameter (Tweeter) MM / IN : 29mm-1.2”
• Components : High-Efficiency Midrange + Bullet Super Tweeters + Dedicated Crossovers
• Design : Signature SP Audio Orange & Black aesthetics with a reinforced basket.
---

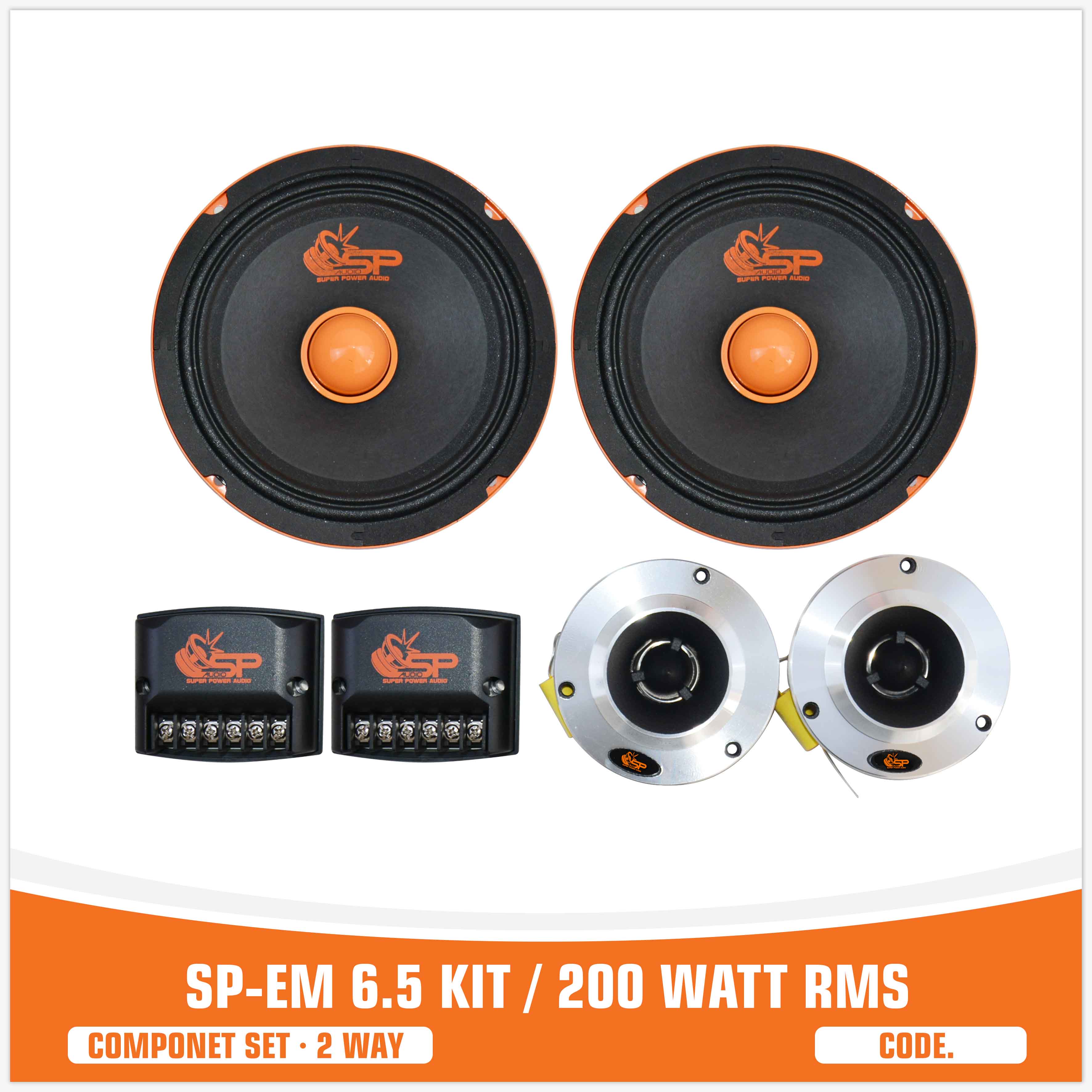

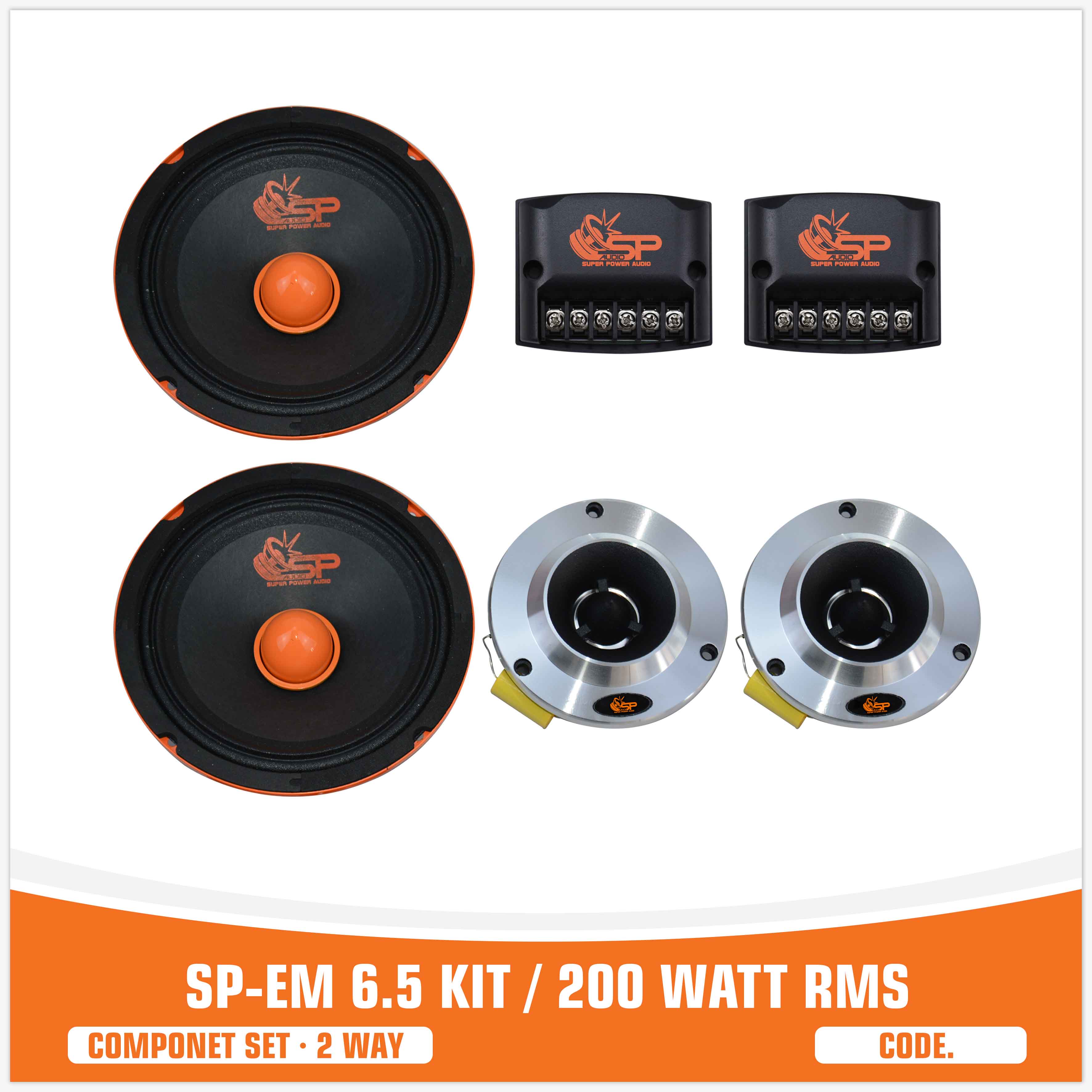

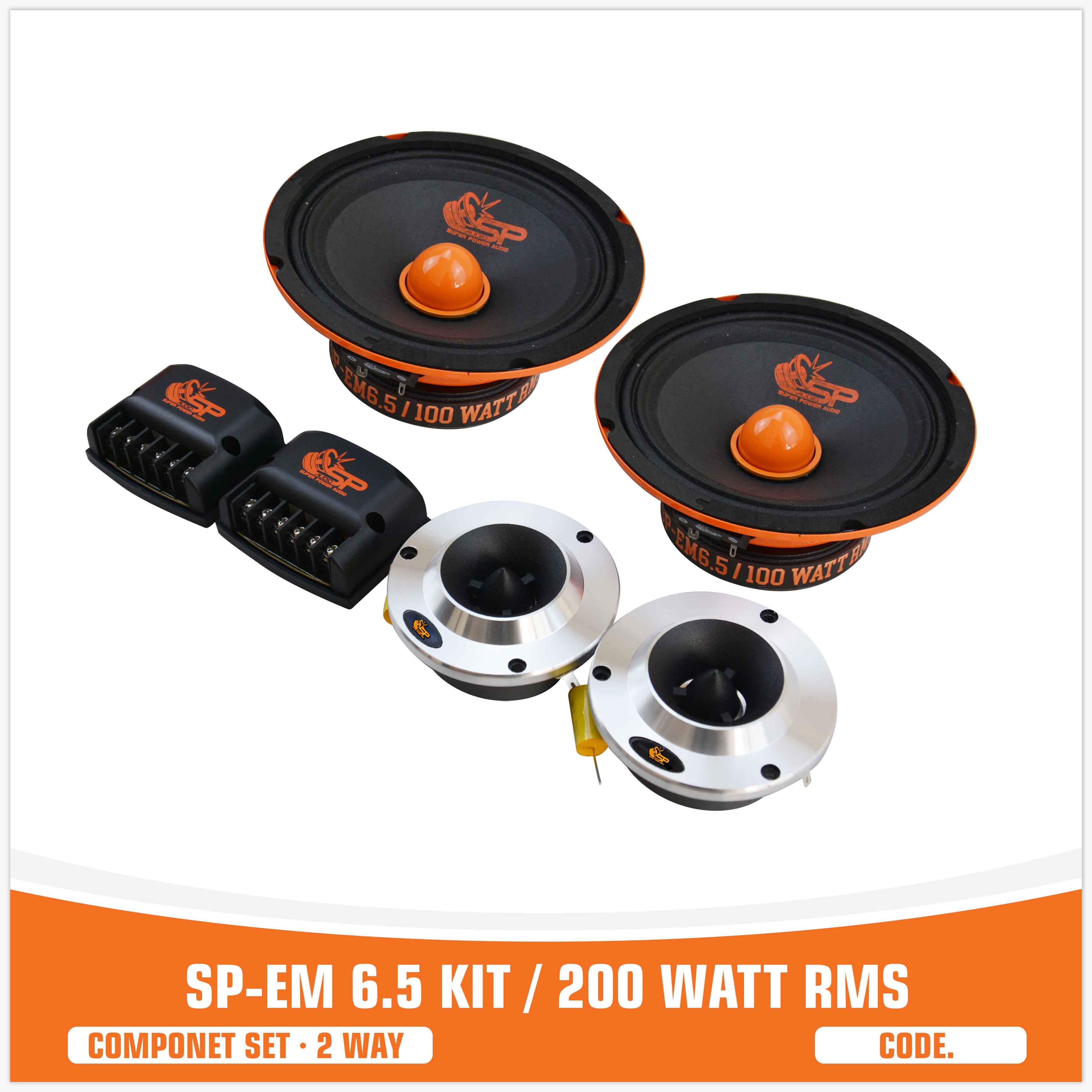

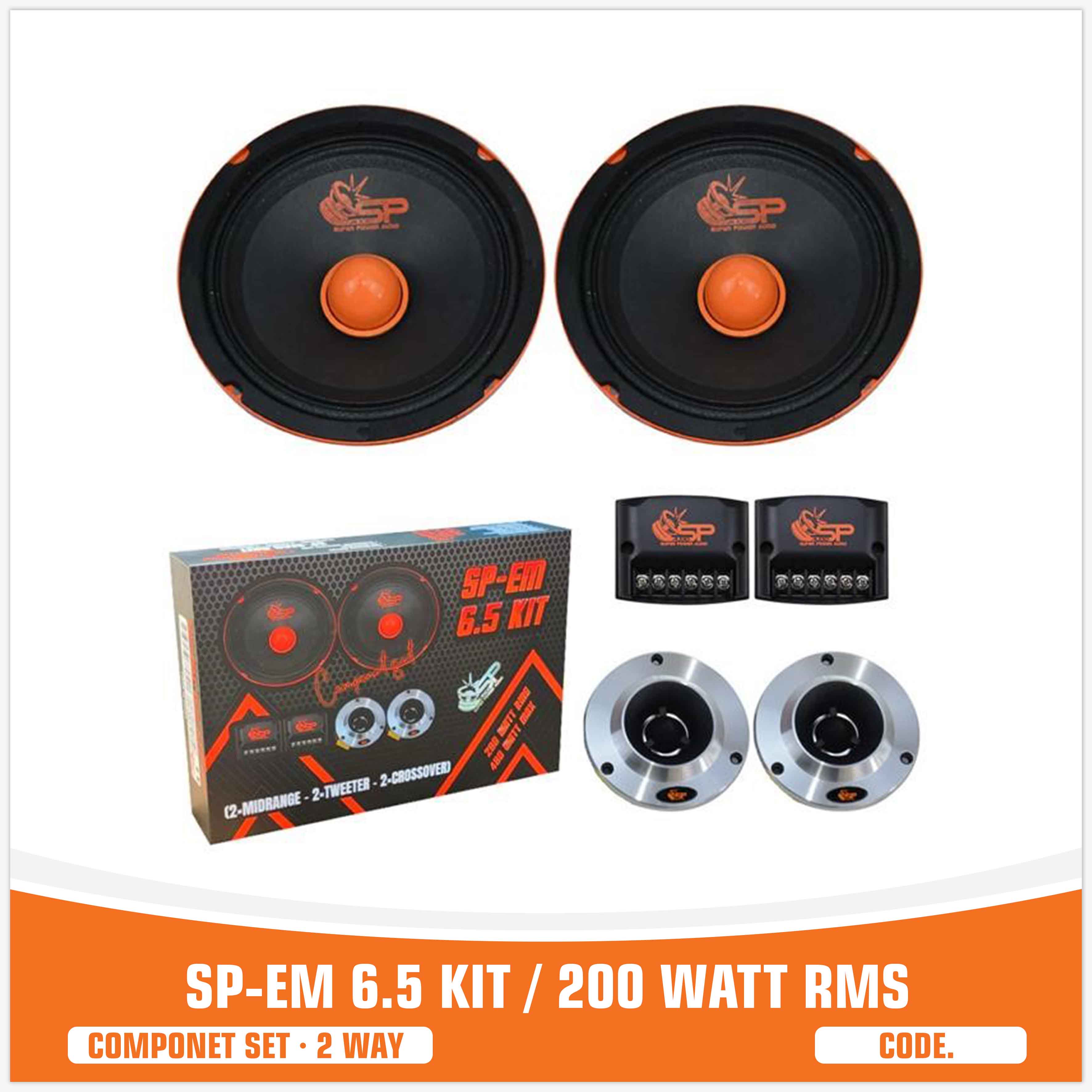

What’s in the Box?

1. 2 x 6.5" Midrange Drivers :
Featuring a rigid cone and a specialized orange phase plug for optimized midrange dispersion and cooling.

2. 2 x Aluminum Super Tweeters :
Precision-machined bullet tweeters designed to deliver sharp, long-range high frequencies.

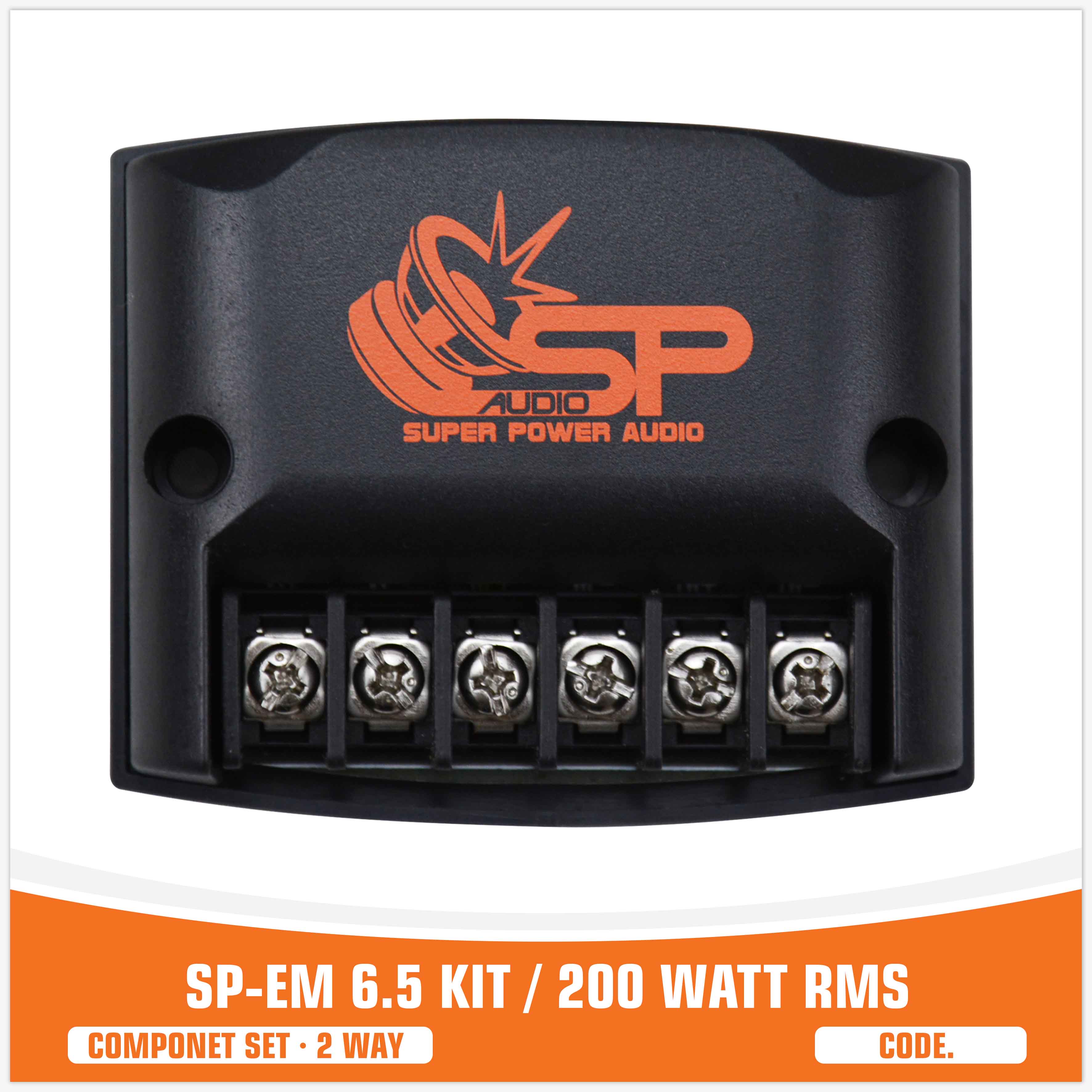

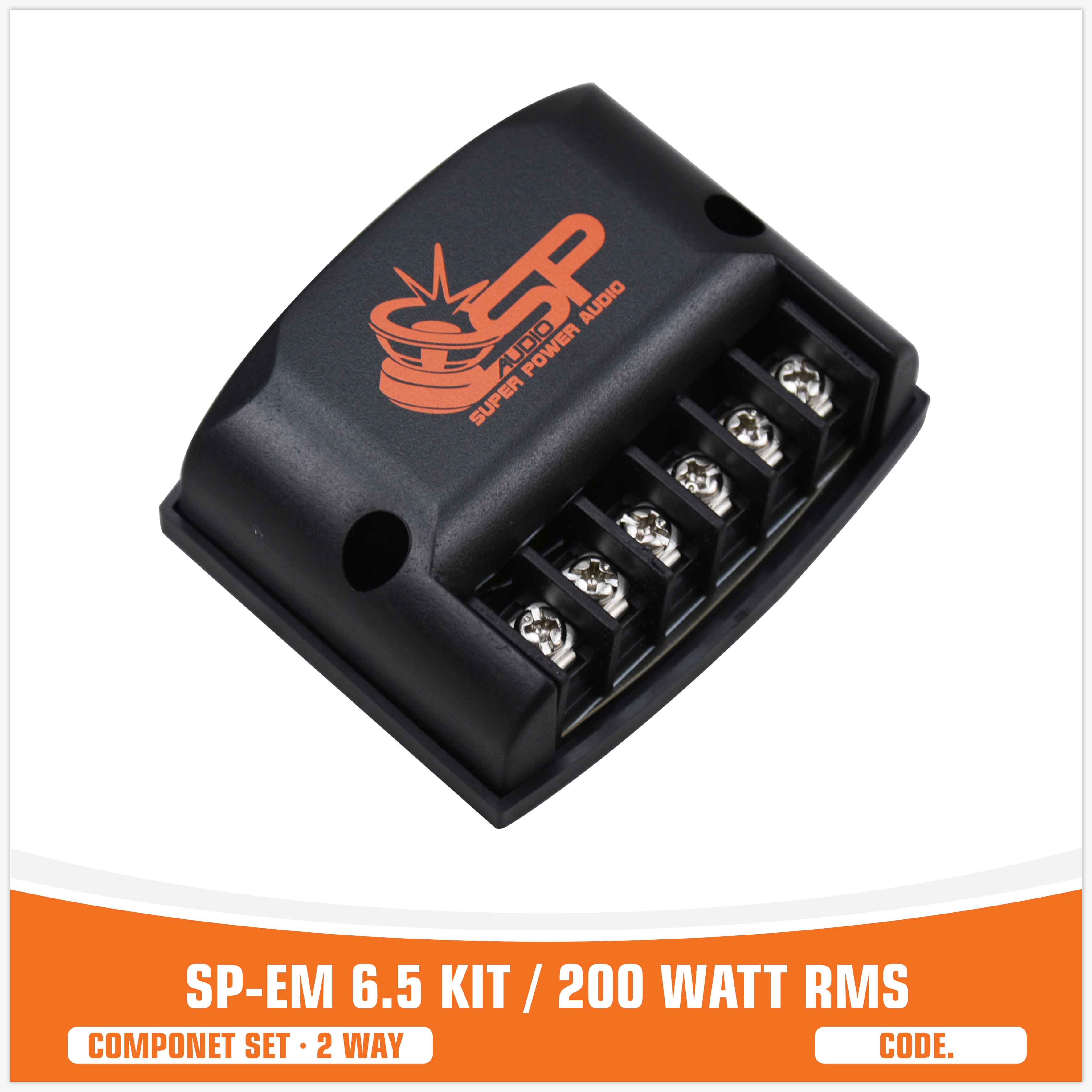

3. 2x Passive Crossover Networks :
High-quality crossovers designed to perfectly balance the frequency transition between the midrange and the tweeter, protecting your components from distortion.
