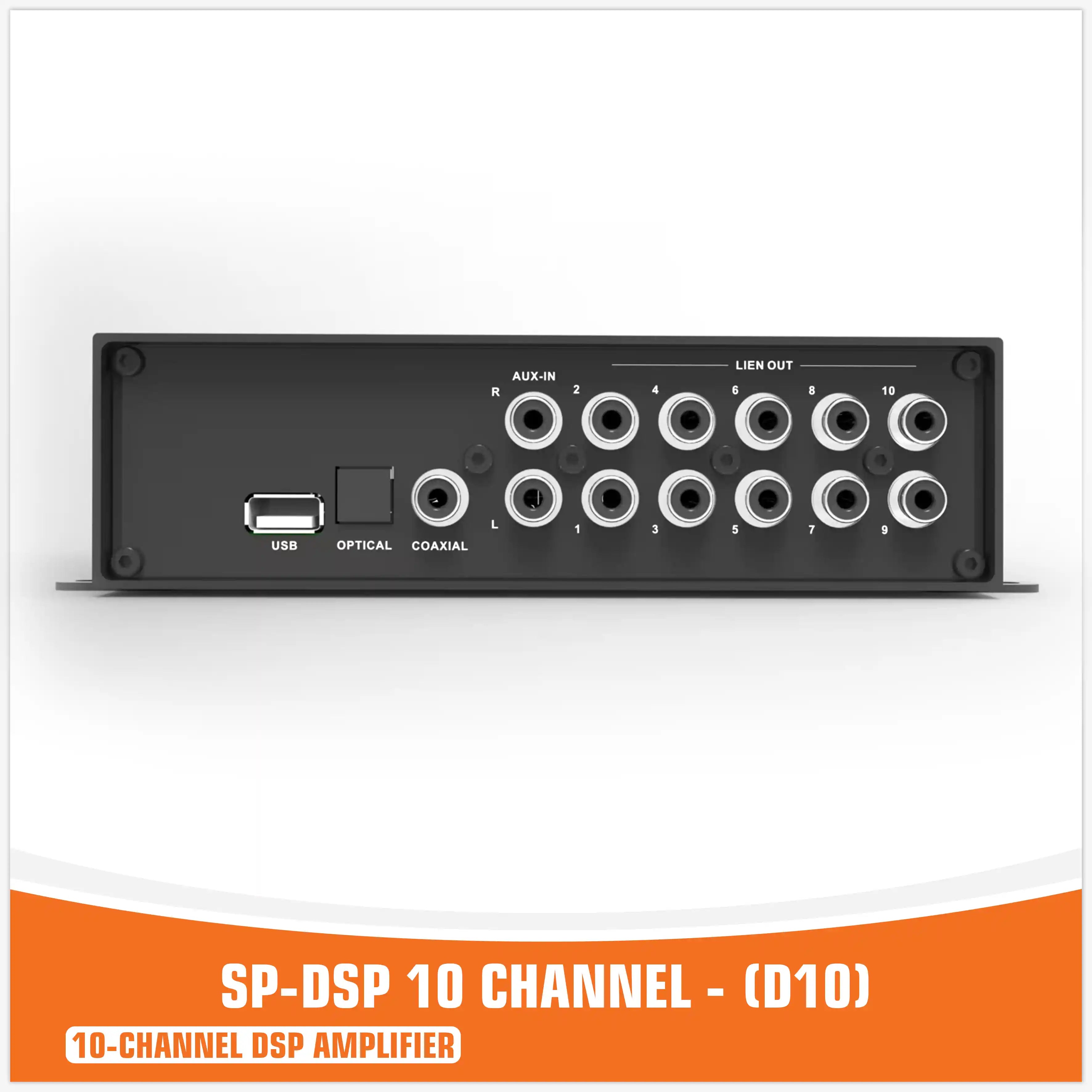

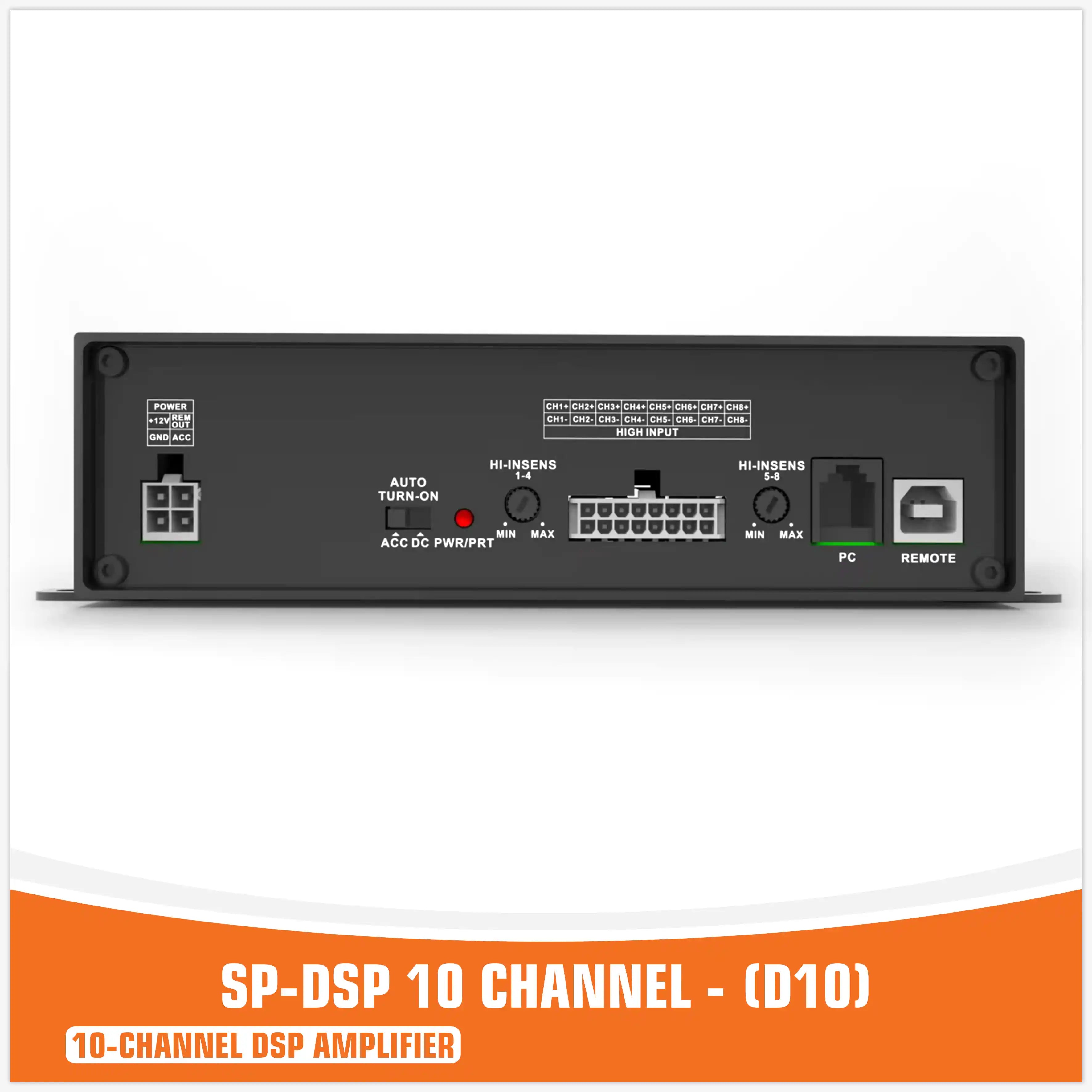

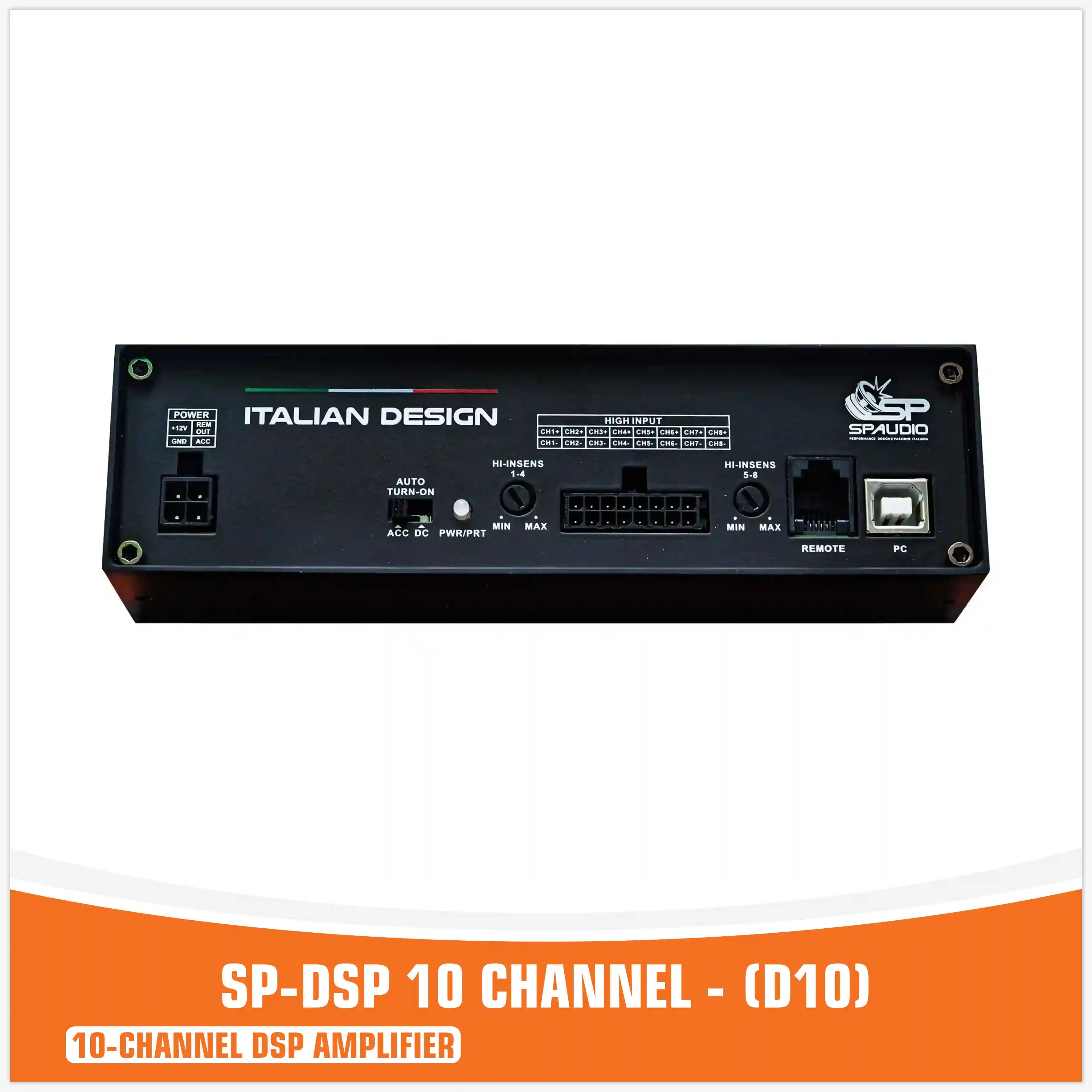

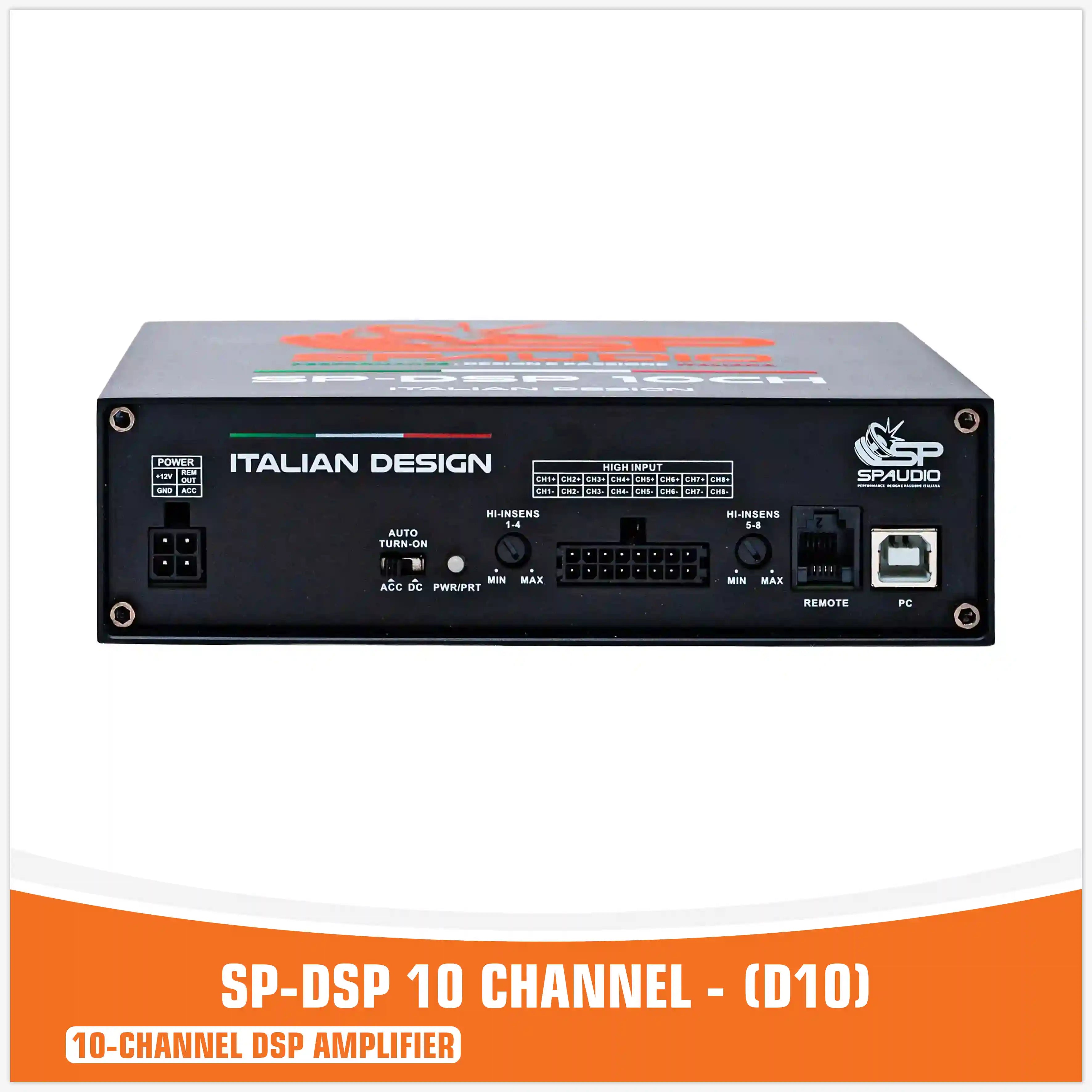

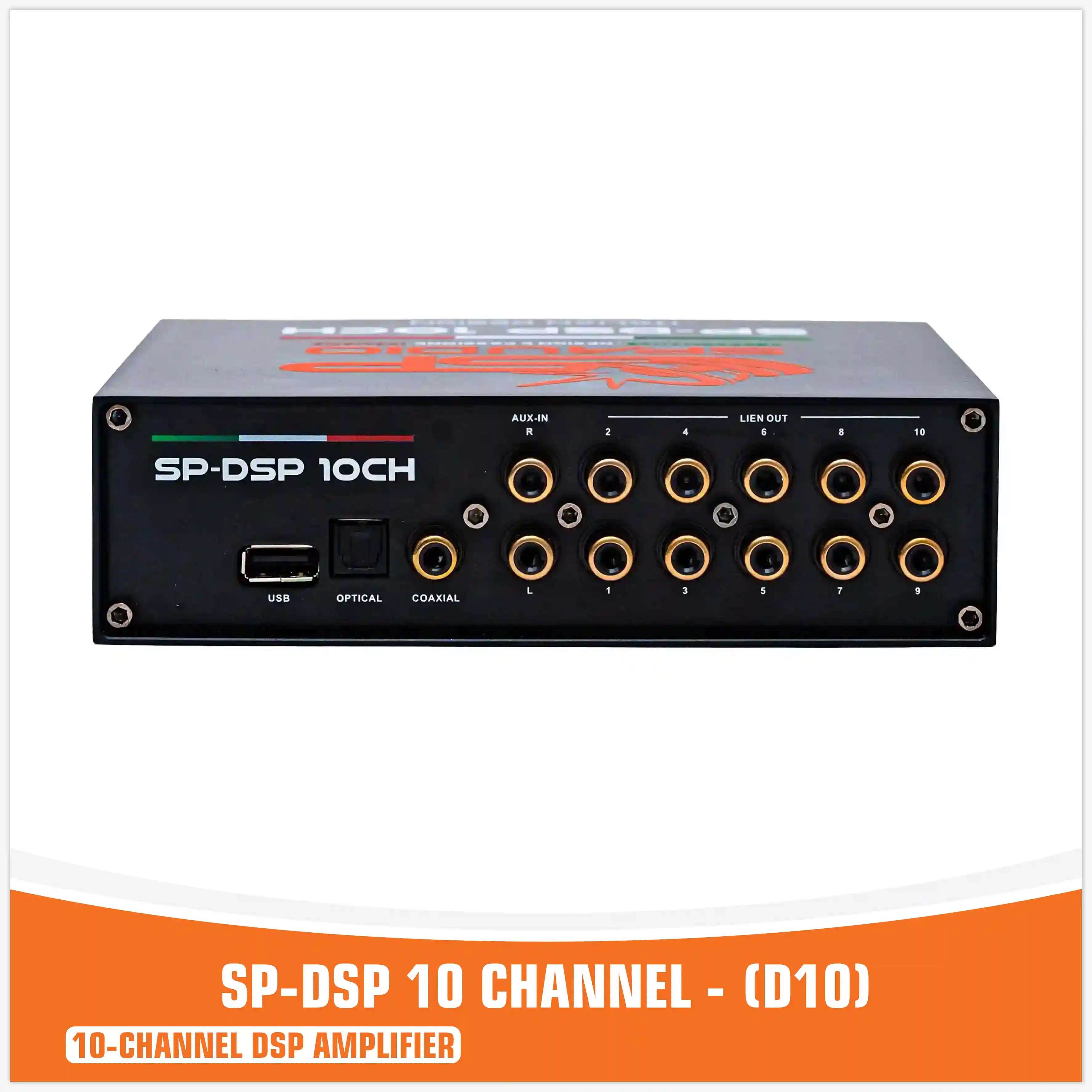

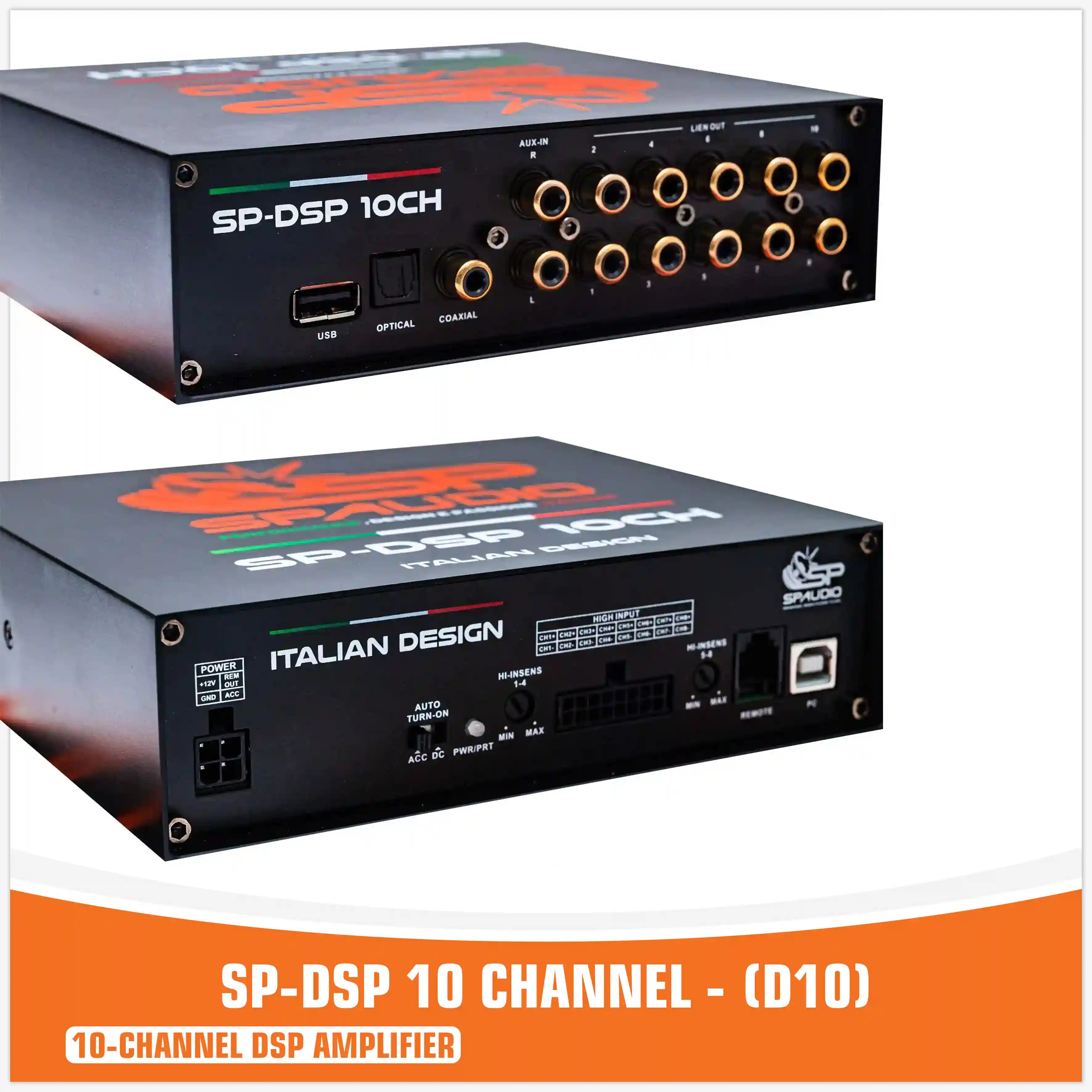

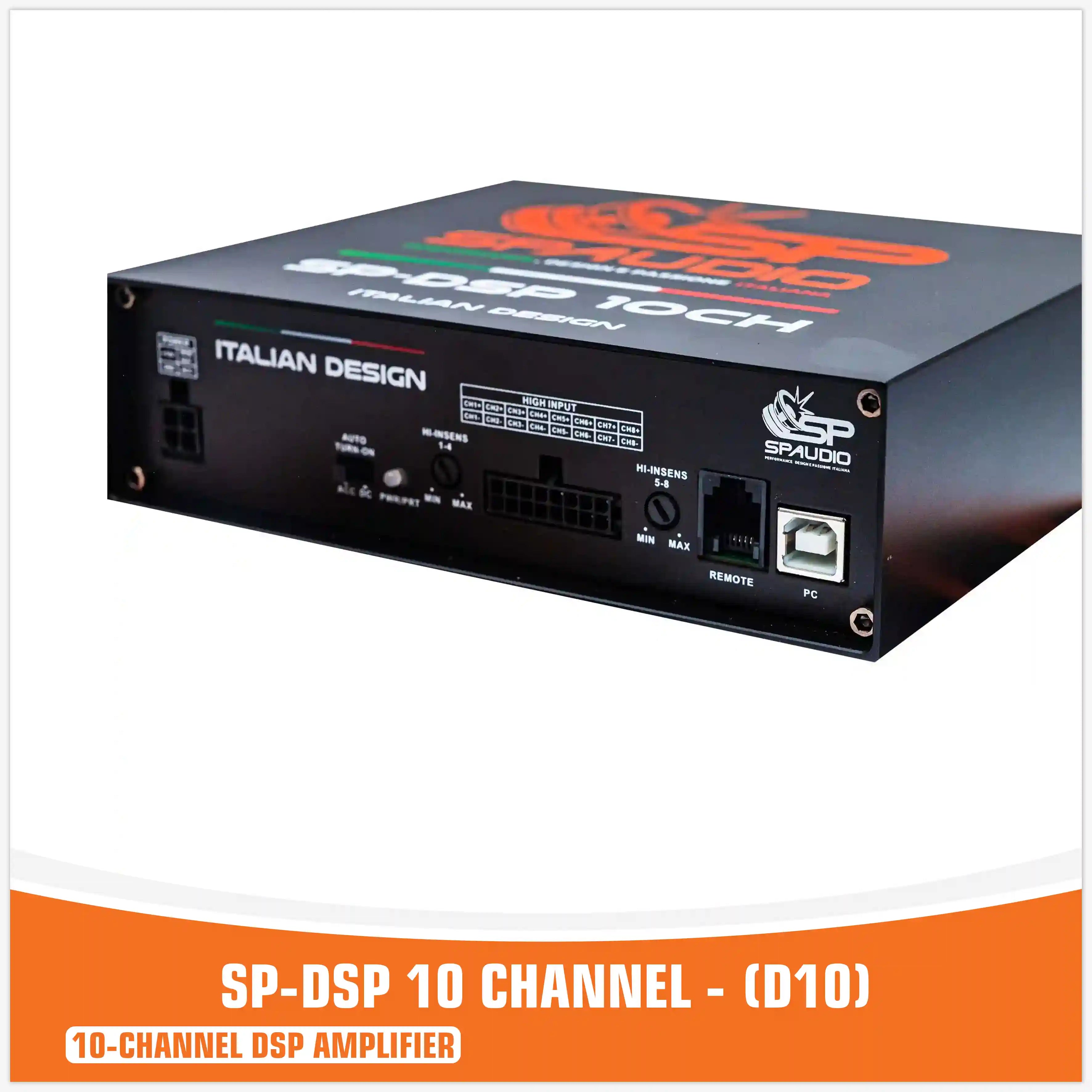

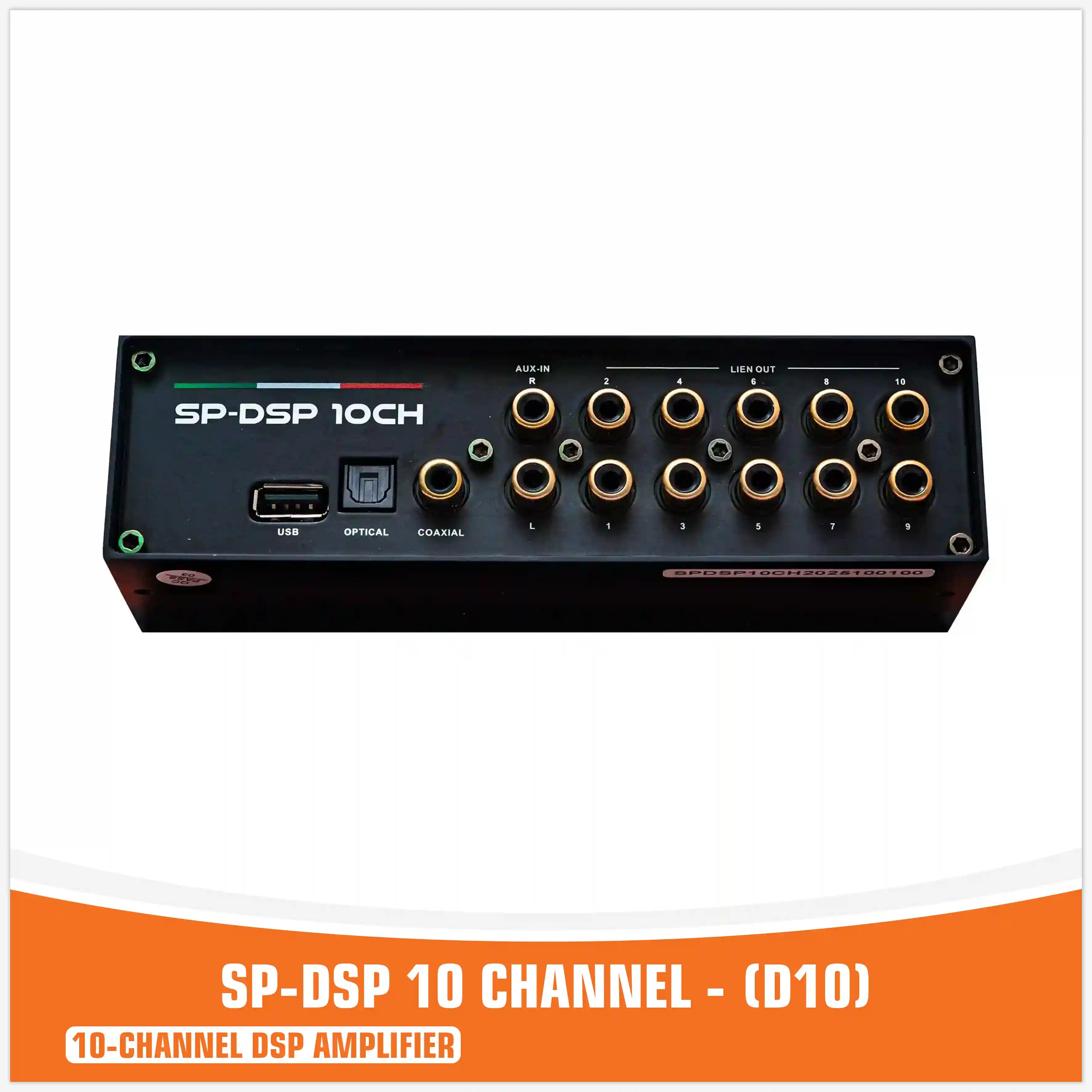

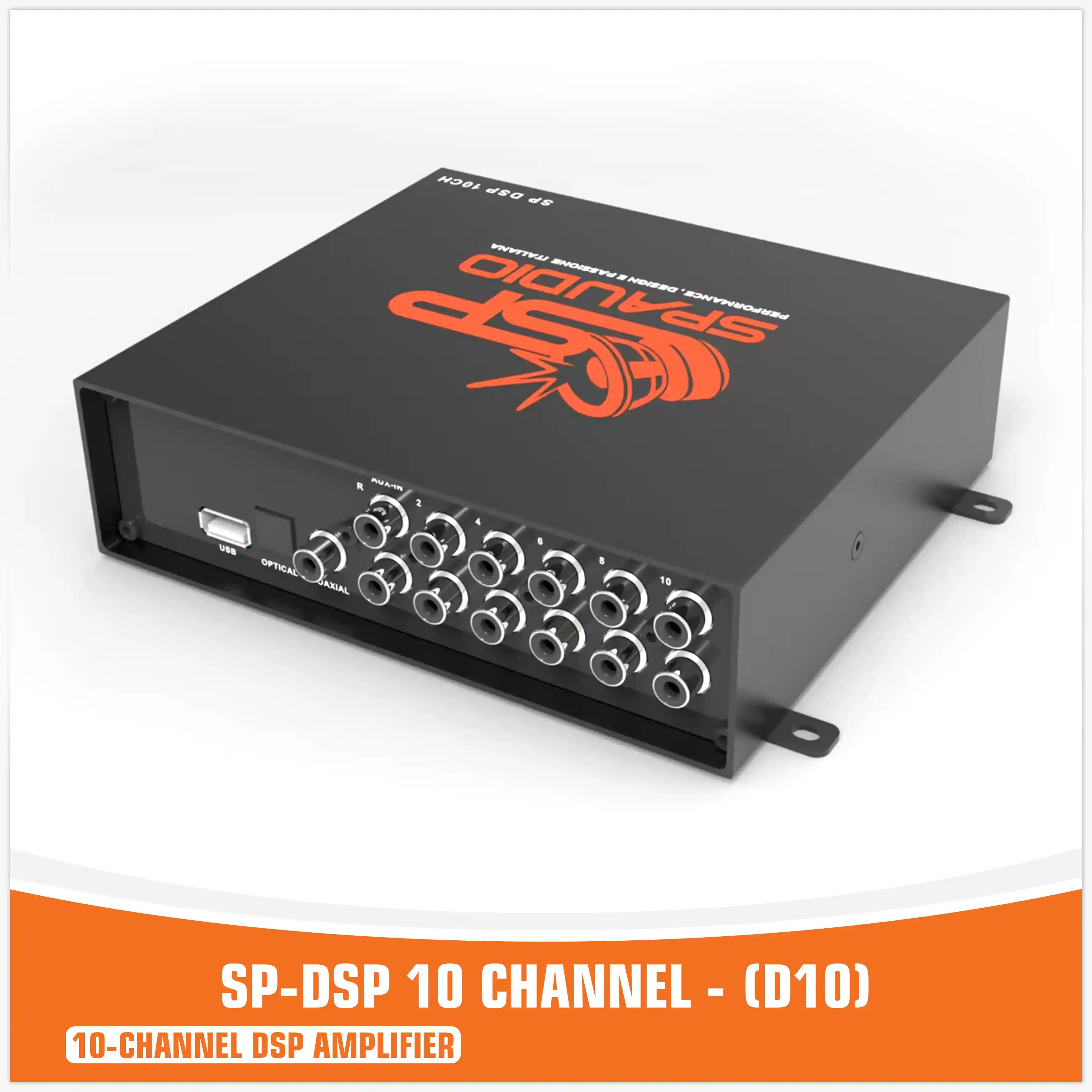

SP-DSP 10 CANALES (D10)

TechnicalSpecification ·

Dynamic Range(RCA Input) : ≥96dB

· S/N (RCA Input) : ≥96dB

· THD : ≤0.01% @ 1KHz 1V

. Frequency Response : 10Hz~22kHz(-3dB)

 . Decoding Capability : 24bit / 96kHz

. Input Impedance : Low Level input : 15KΩ, High Level input: 15Ω

. Low Level Output Impedance : 82Ω

. Signal Input Range: RCA input : 1Vrms; High level input : 5-15Vrms with EPS

. Signal Output Range : RCA output : 4Vrms

 . Working Temperature : -20~80°C

. Power : DC 10V~16V

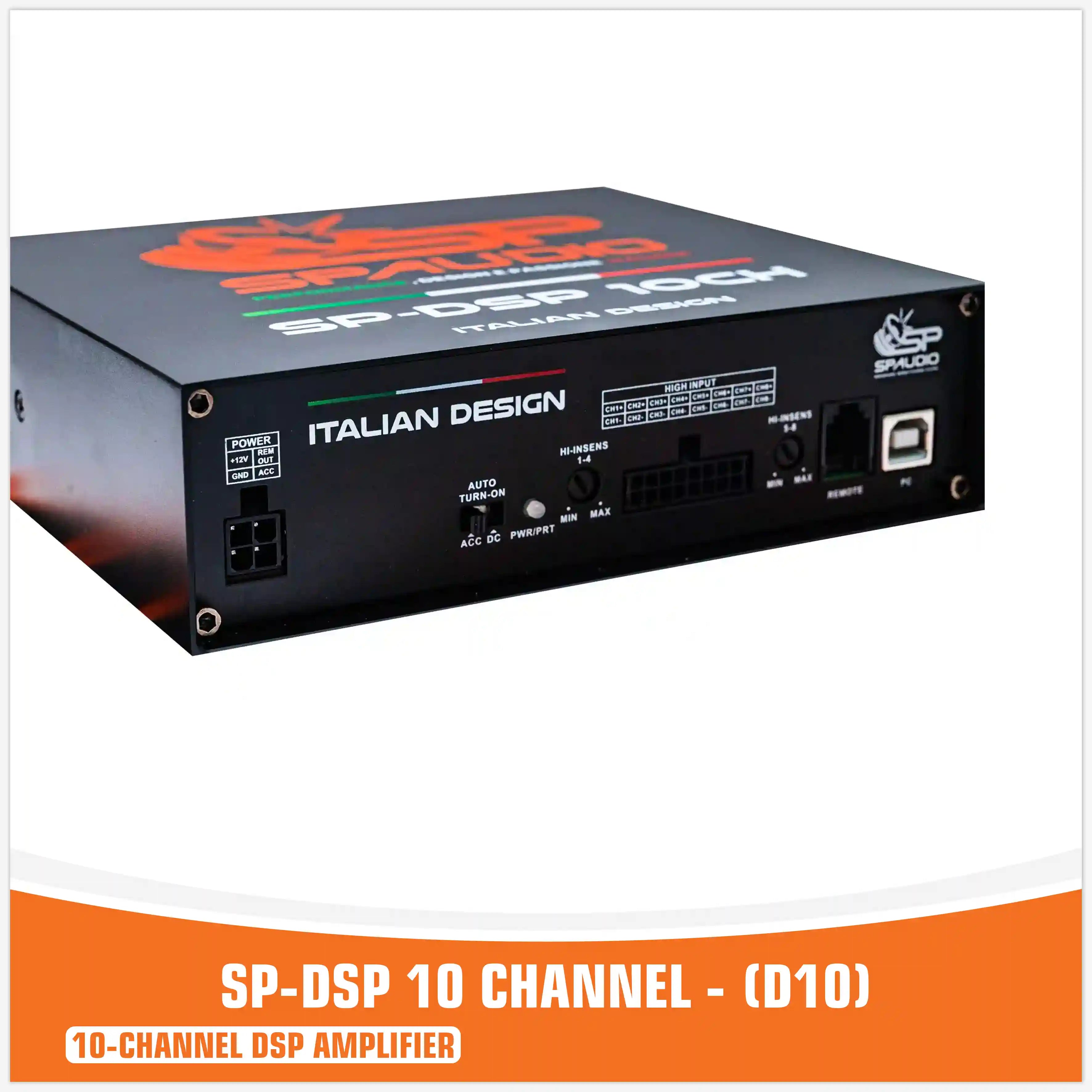

 . REM Input : High Level Input Signal: FL+/FL- or ACC control cable

. REM Output : DC 12V ≥0.2A

. Standby Power : ≤0.1W

-----------------------------------------------------------------------------------

The Functions of DSP

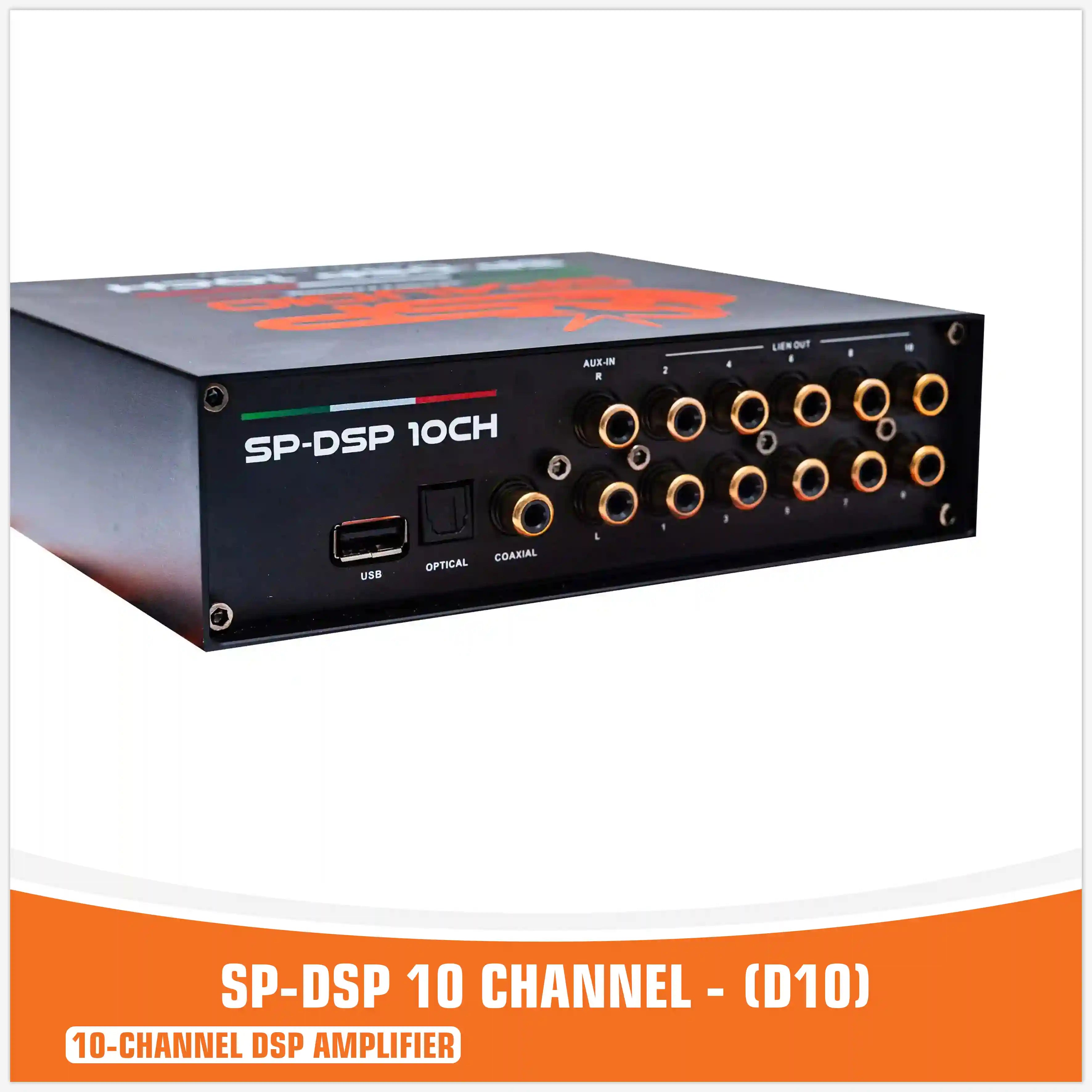

· Input Signal Type : 8 CHannel High Level ,2 CHannel Low Level, Bluetooth 5.0,USB, Optical,Coaxial

. Output Signal Type : 10 Channel low level output

· Output Signal Gain : Gain Range : Mute, -60dB~0dB

 · Output Signal EQ : 31 Levels EQ

. 1.Frequency Range : 20Hz~20kHz, 1Hz Accuracy · 2.Q Value(Slope) 0.4~10 · 3.Gain -20.0dB~+20.0dB, 0.1dB Accuracy

· Output Signal Crossover : Each channel is Equipped with a multi-order high-low pass independent filter.

· 1.Professional filter type : Butterworth, Linkwitz-Riley

. 2.Filter Crossover Point : 20Hz~20kHz, Resolution 1Hz

· 3.Filter Slope Setup : 6dB/Oct~48dB/Oct.

.Output Phase and Time Alignment : Phase and time alignment adjustable for every output channel. .

 Phase : In Phase or Out Phase (0°~180°)

· Time Alignment : 0.000 to 15.000ms, 0 to500cm，0 to 272 Inch

· Presets : Save 6 presets into the device

. Product Dimension : 162*141.5*45mm
